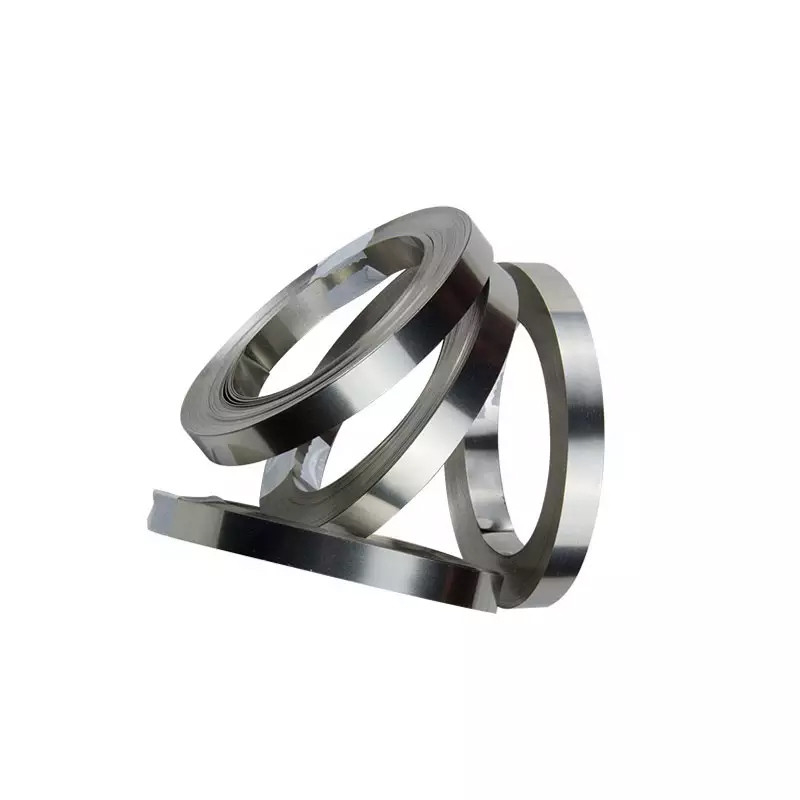

Constant Modulus Foil C 902 Alloy Strip (3J53/Ni42CrTi)
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Malzeme: | Nicrfeti alaşımı | başvuru: | Hassas enstrümanlar ve güzel makine |
|---|---|---|---|
| Tavlama tedavisi: | Vakum Fırında | Durum: | Yumuşak |
| Kalınlık: | 0.1 ~ 9 mm | Genişlik: | 5~300mm |
| Yüzey: | Parlak | Yoğunluk: | 8.0 g/cm3 |
| Uzama: | % 6'dan fazla | Paketi: | Makara, bobin, ahşap kasa |
Constant Modulus Foil C 902 Alloy Strip (3J53/Ni42CrTi)
Elastic alloy is an indispensable material for manufacturing precision instruments and nicety machines.Elastic alloys are provided with the characteristics of high elastic module,high strength,heat-resistance,corrosion-resistance,non-magnetic,stable elastic module in a certain range of temperature,low expansion coefficient ad high quality.Elastic alloys include constant elastic alloys and high elastic alloy.
For Constant elastic alloy,we have 3J53,3J58,mainly for producing frequency components,such as precision sensors,precision spring,mechanical filter vibrators,turning forks for frequency resonances,reeds and films in resonance relays.
Features:
Constant elastic alloys are characterized by a low frequency-temperature coefficient and good mechanical behavior under -40℃~+80℃.(Refer to our standard YB/T 5256-1993,YB/T 5254-1993)
Chemical content:
| Alloy | C | P | S | Si | Mn | Ni | Cr | Mo | Ti | Al | Fe |
| Max | |||||||||||
| 3J53 | 0.05 | 0.02 | 0.02 | 0.8 | 0.8 | 41.5-43.5 | 5.2-5.8 | / | 2.3-2.7 | 0.5-0.8 | Bal. |
| 3J58 | 0.05 | 0.02 | 0.02 | 0.8 | 0.8 | 43.0-43.6 | 5.2-5.6 | / | 2.3-2.7 | 0.5-0.8 | Bal. |
Physical Properties at Aging and Heat Treatment:
| Alloy | Frequency temperature coefficient Bf(x10-6/℃) -40℃~+80℃ |
Longtitudinal vibration wave transfer speed V(x10-6/℃) |
| 3J53 | A:0~20 B:0~10 |
4.80~5.05 |
| 3J58 | -5~5 | 4.75~5.00 |
Physical Properties at Cold Working and Aging Treatment:
| Alloy | Dencity (g/cm3) |
Average Coefficient Of Linear Expansion α20~100℃(x10-6/K) |
Saturation Magnetic Induction B600(T) |
Saturated Magnetostrictive Coefficient λs(x10-6) |
Curie Temperature (℃) |
Resistivity ρ(μΩ.m) |
| 3J53 | 8.0 | 8.1 | 0.7 | +5 | 110 | 1.1 |
| 3J58 | 8.0 | 8.1 | 0.8 | +5 | 130 | 1.1 |
Mechanical Properties at Cold Working and Aging Treatment:
| Alloy | Elastic Modulus E(Mpa) |
Shear Modulus G(Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
Vickers Hardness (HV) |
| 3J53 | 176500~19100 | 63500~73500 | 1450 | ≥6 | 420 |
| 3J58 | 176500~19100 | 63500~73500 | 1450 | ≥10 | 400 |
