ASTM B424 Incoloy 825 Acid-Resistant Plate for Chemical Processing Equipment
|
|
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Detaylı ürün tanımı
| Uygulama: | Havacılık bileşeni | Şekil: | Çubuk |
|---|---|---|---|
| Yüzey: | parlak ve pürüzsüz | Renk: | Gümüş beyaz |
| Standart: | ASTM, DIN | Yoğunluk: | 7.75 g/cm3 |

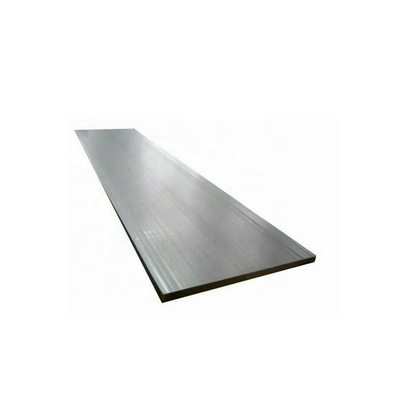

ASTM B424 Incoloy 825 Acid-Resistant Plate for Chemical Processing Equipment
Incoloy 825
Introduction
Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Alloy 825 is especially resistant to sulfuric and phosphoric acids.
Typical Uses and Applications
This nickel steel alloy is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment.
Product Details
Chemical composition:
| Grade | Ni% | Cr% | Mo% | Fe% | Al% | Ti% | C% | Mn% | Si% |
| Incoloy 825 | 38-46 | 19.5-23.5 | 2.5-3.5 | Bal. | Max 0.2 | 0.6-1.2 | Max 0.05 | Max 1.0 | Max 0.5 |
Specifications:
| Grade | UNS | Werkstoff Nr. |
| Incoloy 825 | N08825 | 2.4858 |
Physical Properties:
| Grade | Density | Melting Point |
| Incoloy 825 | 8.1g/cm3 | 1370°C-1400 °C |
Mechanical Properties:
| Heat Treatment | Tensile Strength | Yield Strength σp0.2/MPa | Elongation | Brinell Hardness |
| σ5 /% | ||||
| Solution Treatment | 550 N/mm² | 250 N/mm² | 35% | ≥200 |
Available Specifications:
| Grade | Bar | Forging Parts | Welded Tube | Seamless Tube | Sheet/Strip |
| Incoloy 825 | ASTM B425 | ASTM B564 | ASTM B704/705 | ASTM B423 | ASTM B424 |
Available forms:

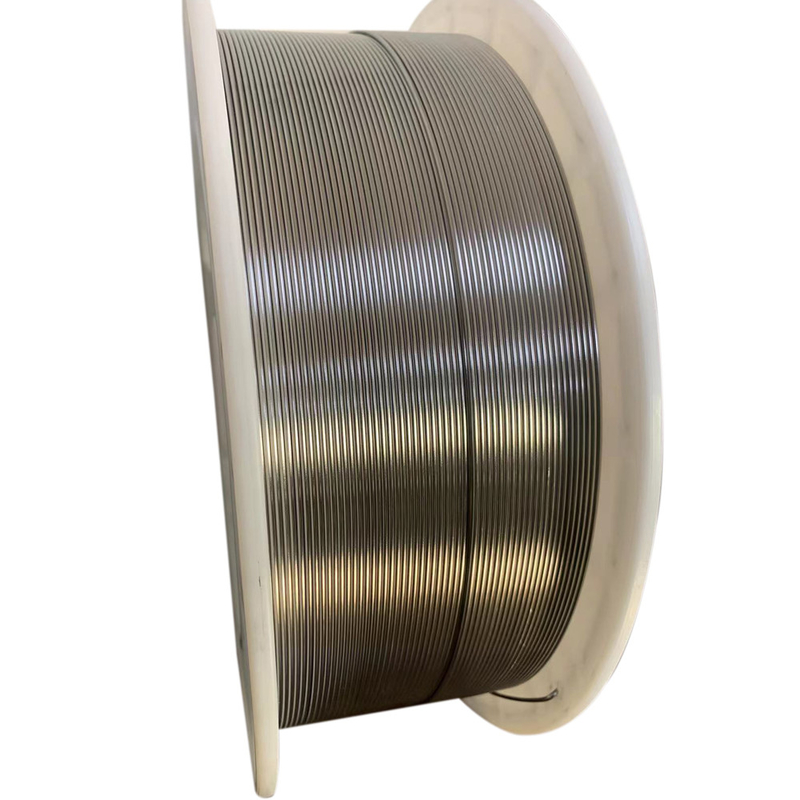

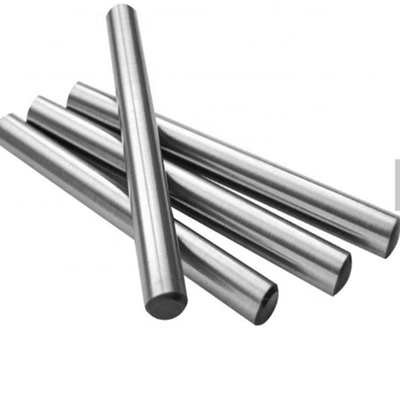

Incoloy 825 wire, bar, rod, strip, forging, plate, sheet, tube, fastener and other standard forms are available.
Available for product specifications
| Grades | Type | Thickness/mm | Width/mm |
| N08800 | Coil | 1.0-5.0 | 900-1200 |
| Medium plate | |||
| Round bar | |||
| Round wire rod | |||
| N08810/N08811 | Coil | ─ | ─ |
| Medium plate | 6-68 | 1400-2500 | |
| Round bar | 80-350 | ||
| Round wire rod |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
